The VLX 138 Panoramic Sliding Door is what you install when the view is the point. We’re talking about a door that can stretch up to 36 feet wide with slim 1.535-inch profiles, so the glass dominates and the frame nearly disappears. Coastal homeowners from La Jolla to Coronado use this door to turn a living room into an open-air terrace facing the Pacific. As an authorized ViewLux installation partner, Westlight Windows San Diego handles the full project: measuring, ordering, installing per AAMA standards, and standing behind the work. If you’re researching this door for a San Diego remodel or new build, call (619) 793-3829 and we’ll walk you through real pricing for your opening size.

Call (619) 793-3829

Product Overview – VLX 138 Panoramic Sliding Door

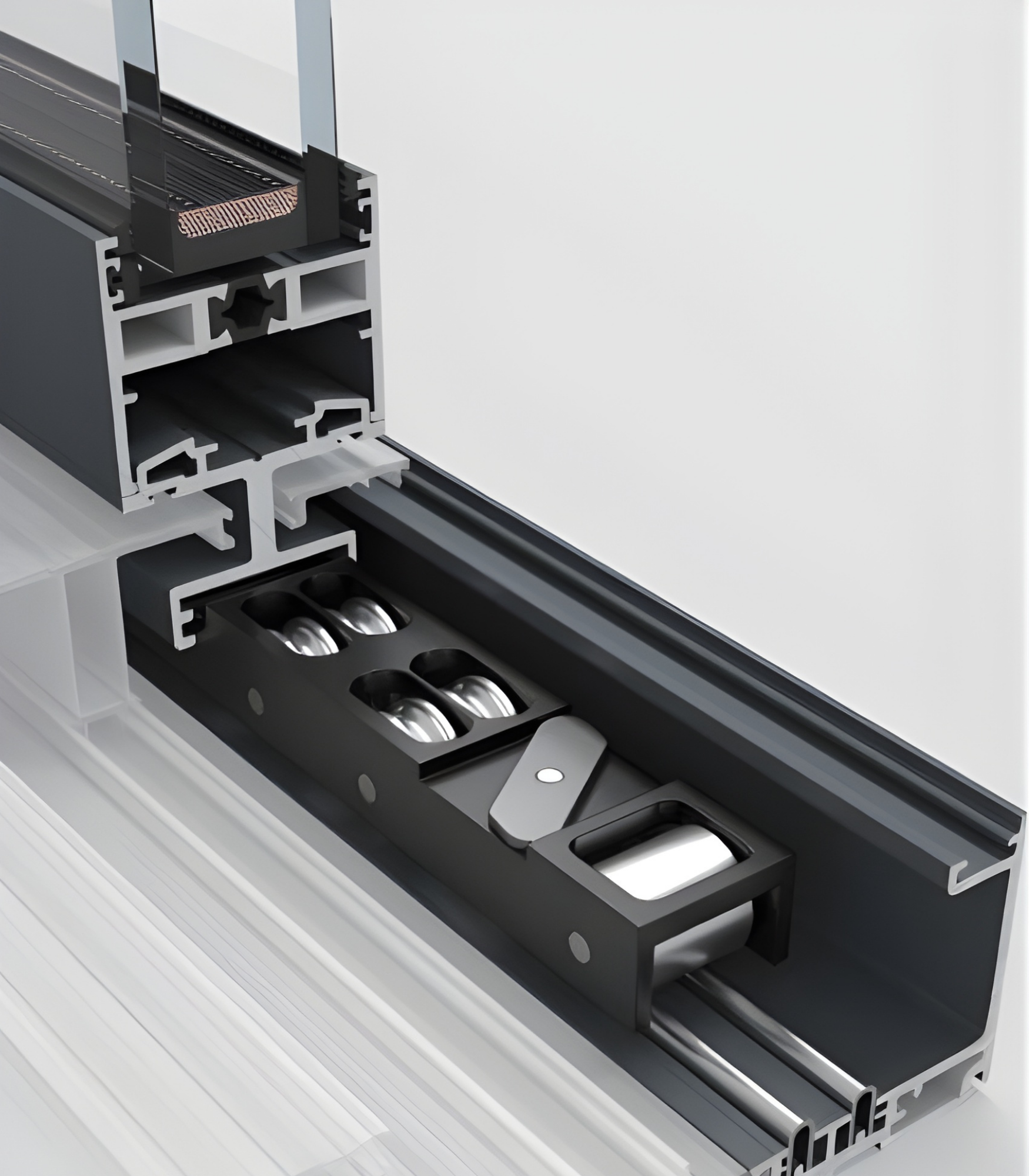

The VLX 138 is a luxury large-span panoramic slider built for expansive uninterrupted views. The design philosophy is straightforward: reduce the frame, maximize the glass, and make the operation so smooth you can move a 1,000-pound panel with one hand. That smoothness comes from stainless steel bearings riding on precision-machined tracks, not plastic rollers that wear out in five years.

Architecturally, this door fits modern coastal homes, mid-century remodels in Point Loma, and contemporary builds in Del Mar or Encinitas where indoor-outdoor flow drives the floor plan. Buyers choose the VLX 138 over standard sliding doors for three reasons: the span capability (up to 36 feet in a single opening), the thermal break that keeps utility bills sane even with a wall of glass facing west, and the finish options that hold up to salt air without pitting or fading.

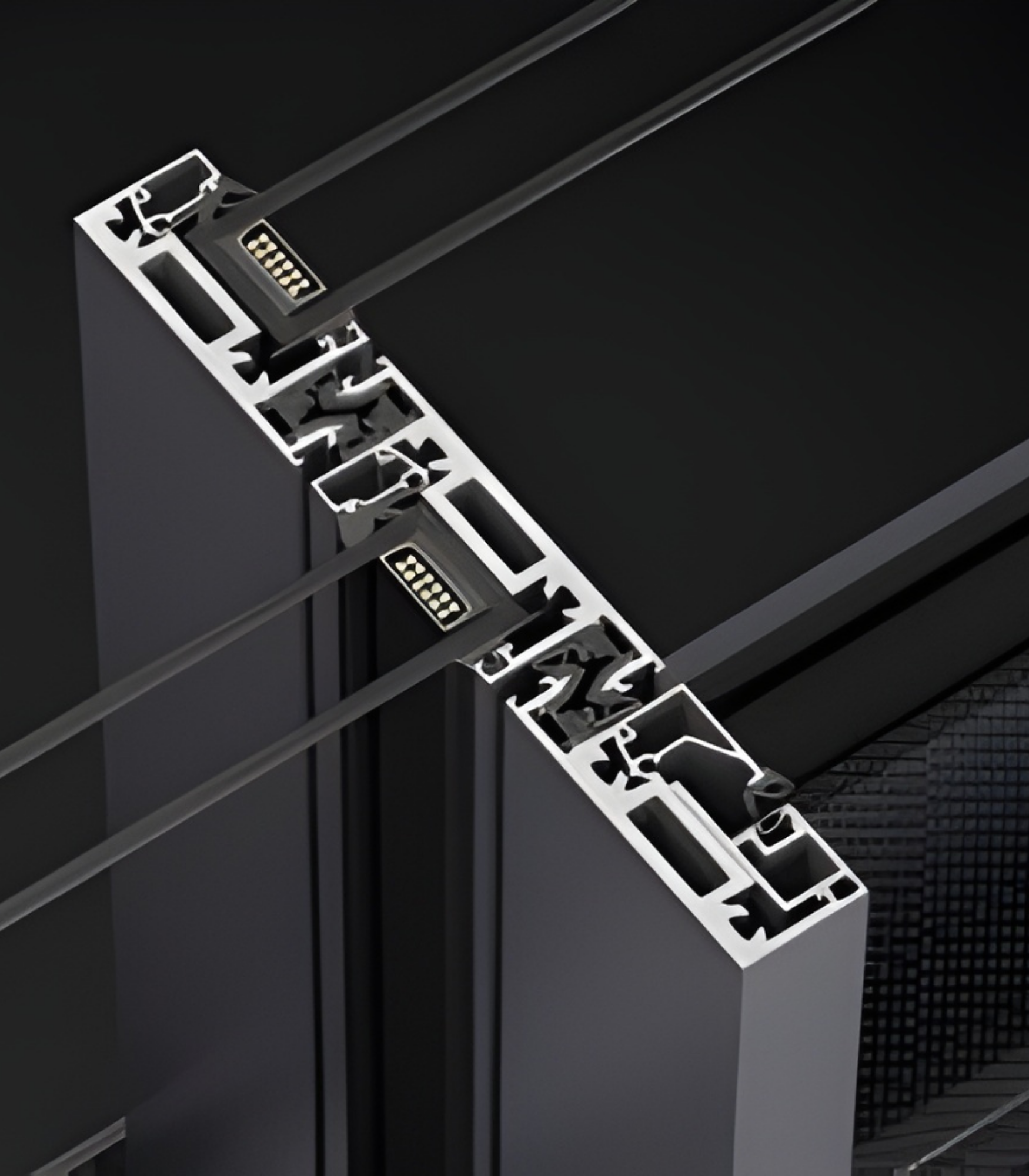

The frame starts with the 0.138-inch wall thickness, which is what gives the VLX 138 its structural backbone. Thin enough to keep sightlines clean, thick enough to carry laminated impact glass and still operate smoothly. Unlike cheaper extrusions that flex under wind load, this profile stays straight, which matters in San Diego’s canyon corridors where gusts can hit hard in February.

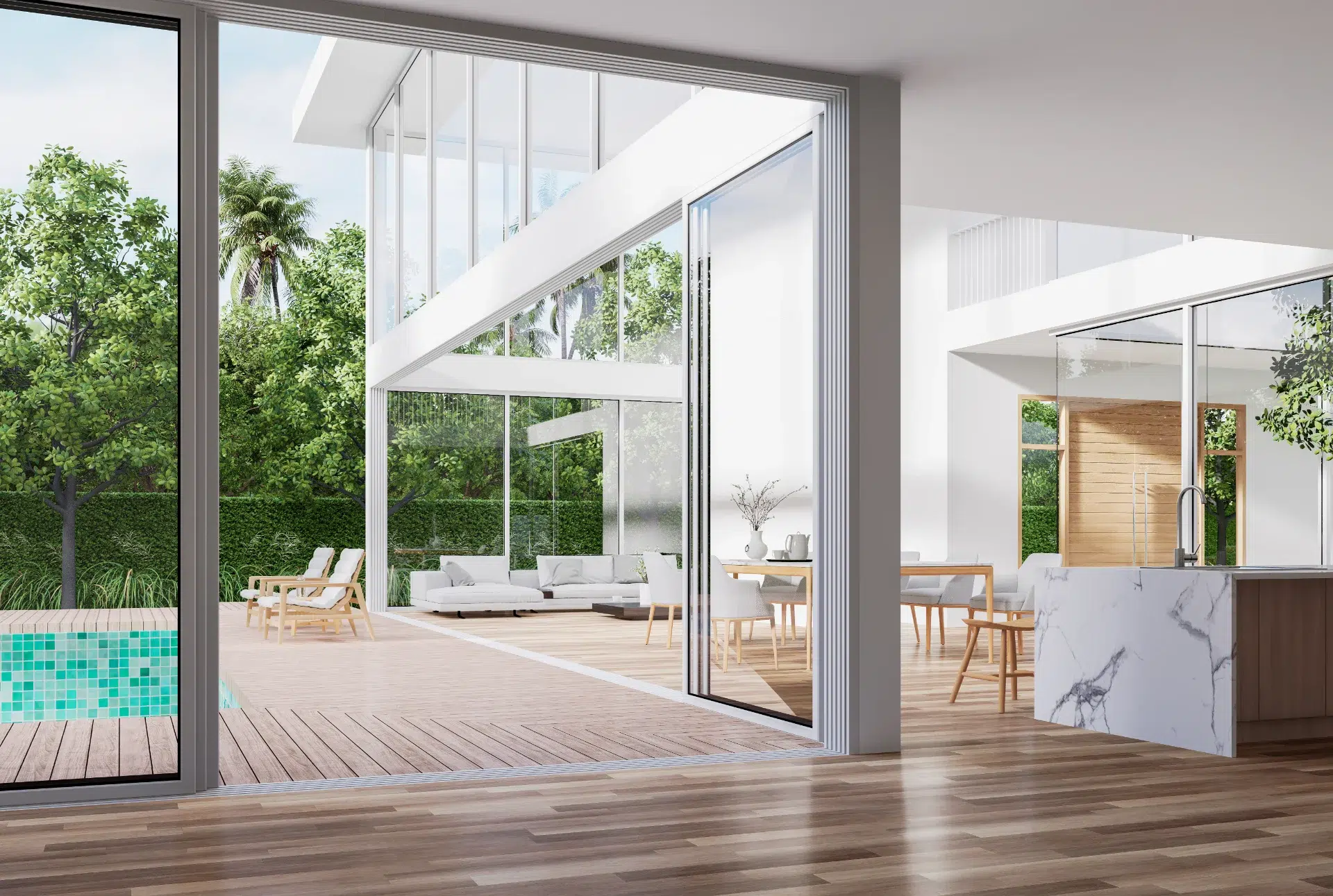

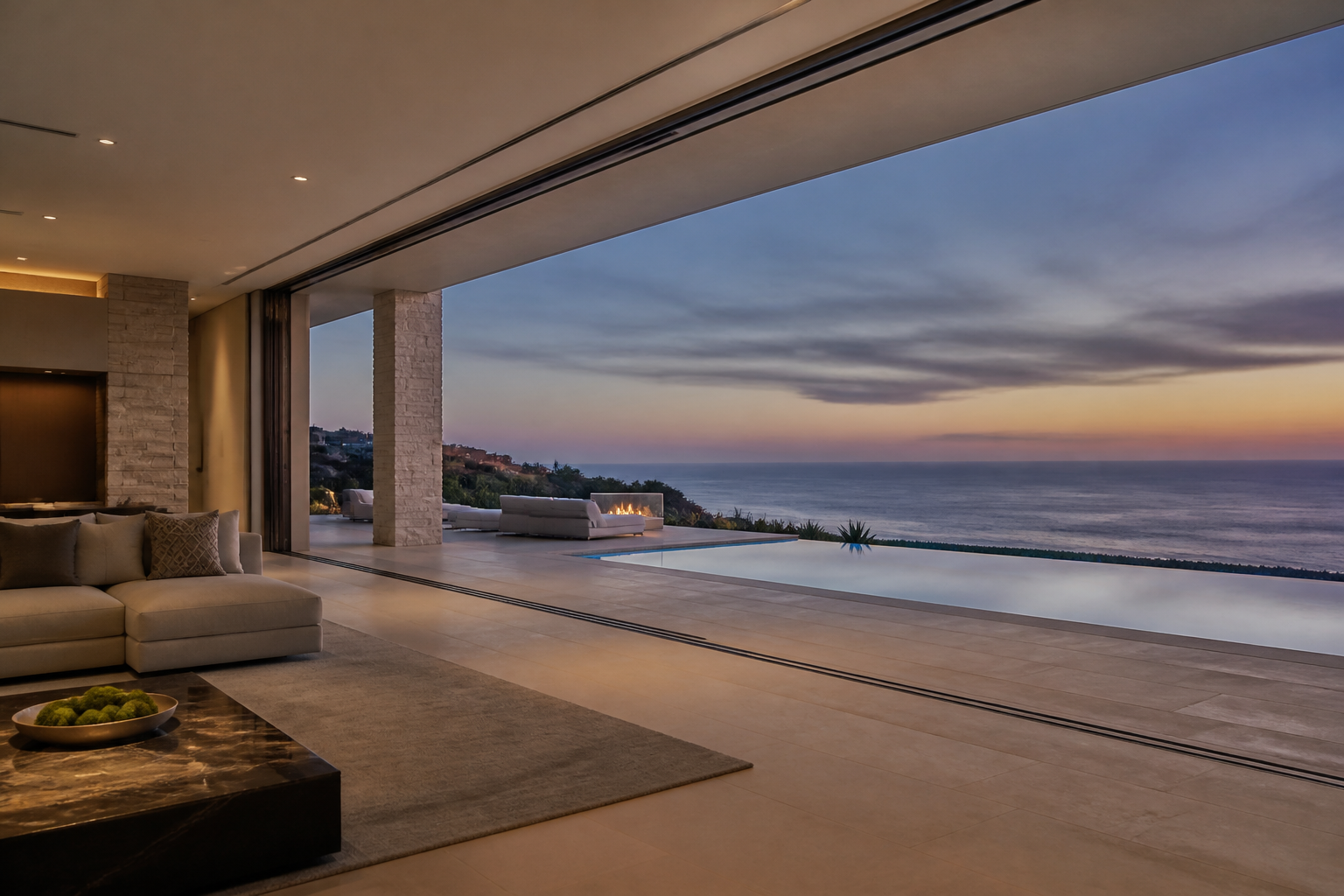

For San Diego homeowners, this door solves a specific problem: you buy a house for the view, then realize the existing patio door chops it into pieces. The VLX 138 replaces that with a continuous pane of glass. No center post, no thick mullions, just an unbroken sightline from your kitchen to the ocean or canyon or backyard pool.

Technical Specifications

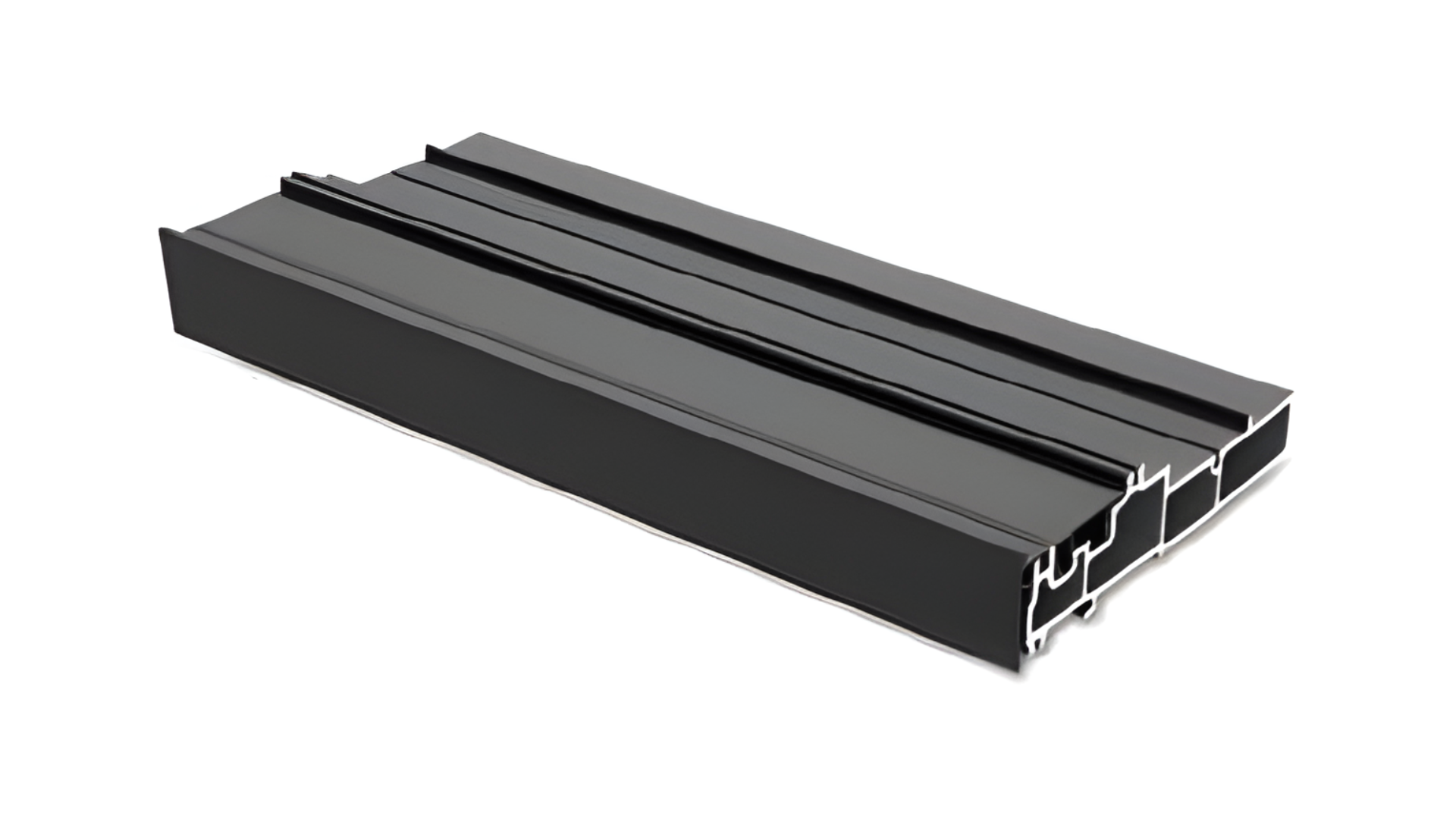

Track count depends on how many panels you want and how wide the opening is. A 2-track system gives you two sliding panels, typically one fixed and one moving, or both moveable. Three-track and four-track setups allow more panels and wider openings while keeping each panel manageable. Your sill choice affects accessibility and water performance. The flush sill sits nearly level with flooring, which matters for aging-in-place designs and wheelchair access. The recessed sill tucks the track into the floor structure for the cleanest look, and the low-profile sill splits the difference.

Performance Features

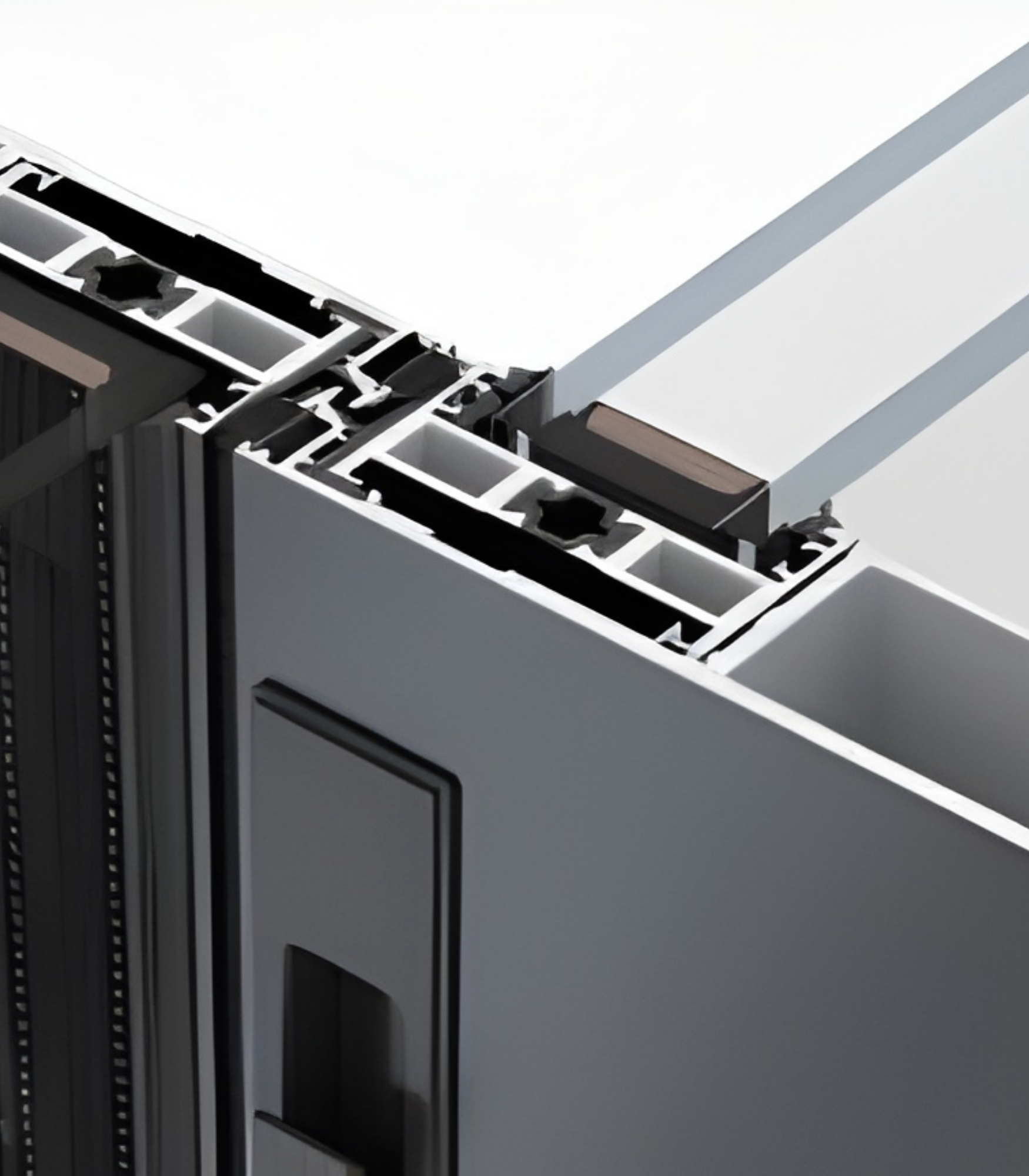

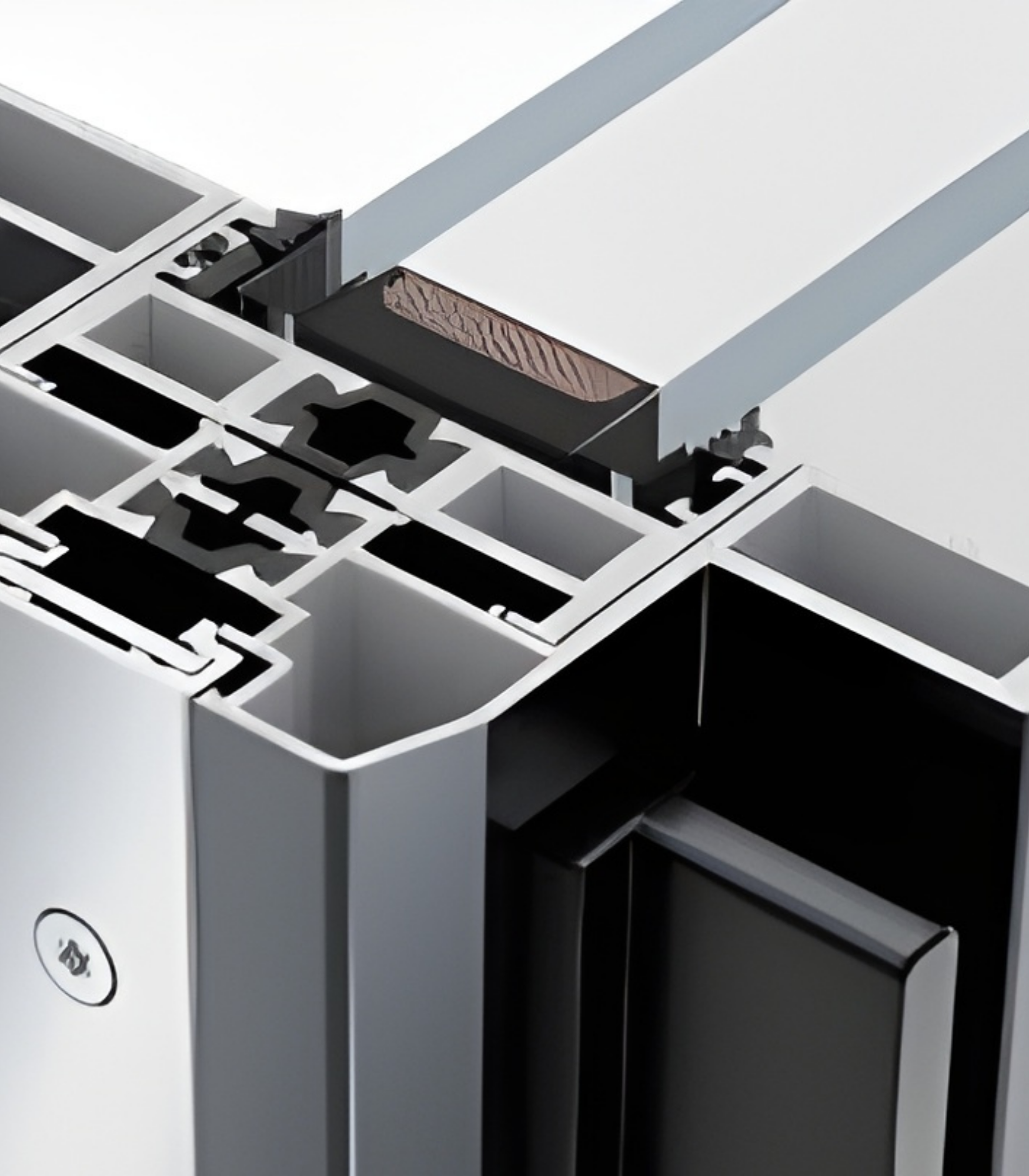

Thermal Efficiency – The VLX 138 uses thermal break technology throughout the frame, which separates the interior and exterior aluminum to stop heat transfer. NFRC-rated energy performance data is available for each glass package. In San Diego, where afternoon sun hits west-facing glass hard, a Low-E package with a thermally broken frame keeps cooling costs from spiraling.

Acoustic Performance – Laminated glass options plus the airtight perimeter seal cut exterior noise. If your San Diego home sits near the I-5, the trolley line, or a busy stretch of Garnet Avenue in Pacific Beach, the right glass package turns a noisy corner into a quiet living space.

Airtightness & Weather Seal – Every perimeter joint gets sealed per AAMA 812 standards using low-expansion foam sealant. This prevents air leaks that cause drafts and energy loss. It also keeps the track free of dust and debris that would otherwise grind down the bearings over years of use.

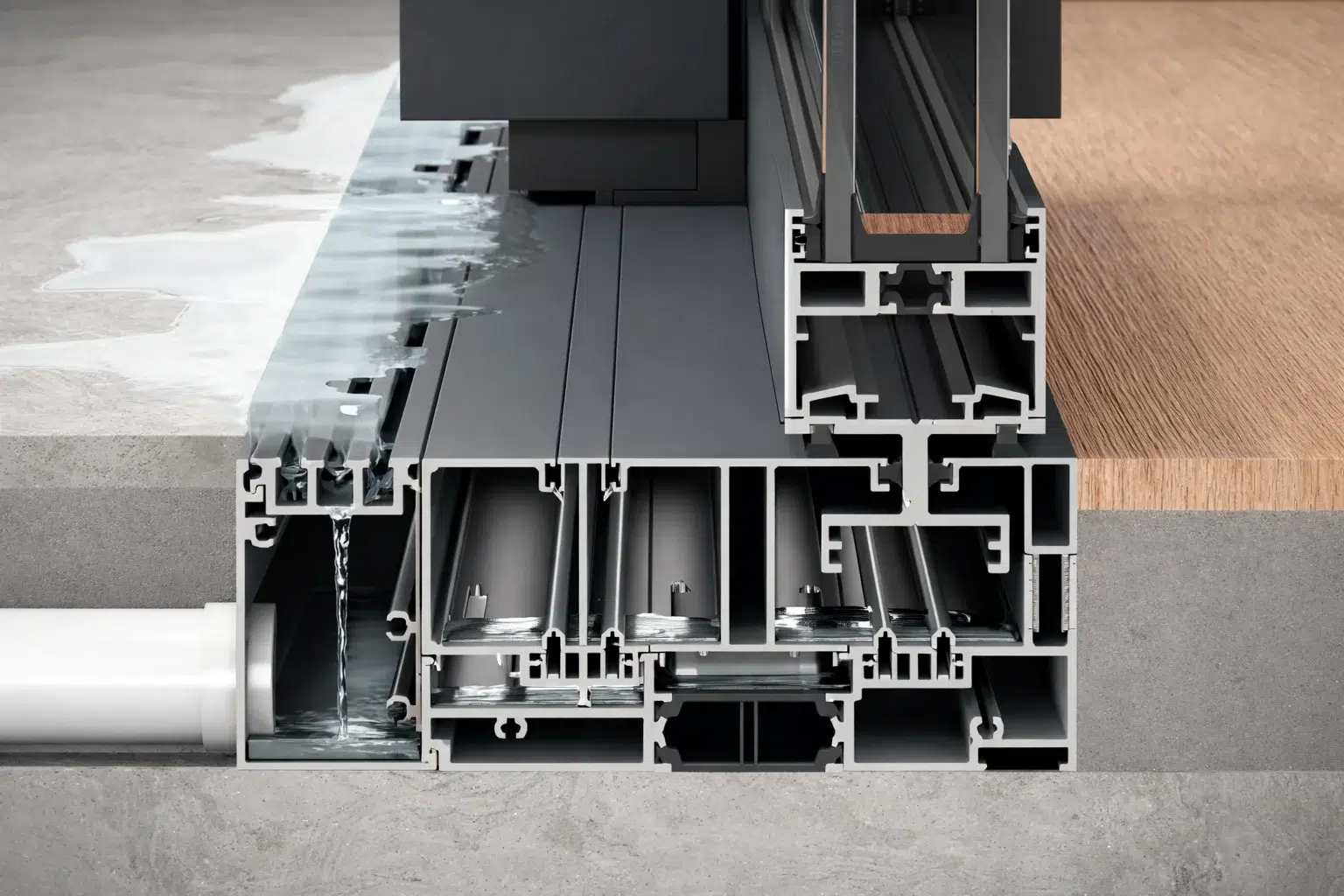

Waterproofing – San Diego’s winter rain events are getting more intense. The VLX 138’s sill design routes water out and away from the interior, and the installation method includes a full water test after the door is set. No puddles on the floor after a February downpour.

Wind Resistance – The 0.138-inch frame wall and engineered track system are wind-load rated for San Diego’s coastal and canyon wind conditions. Impact-resistant laminated glass is available for homeowners in fire-prone or high-wind zones who want the extra structural integrity without adding storm shutters.

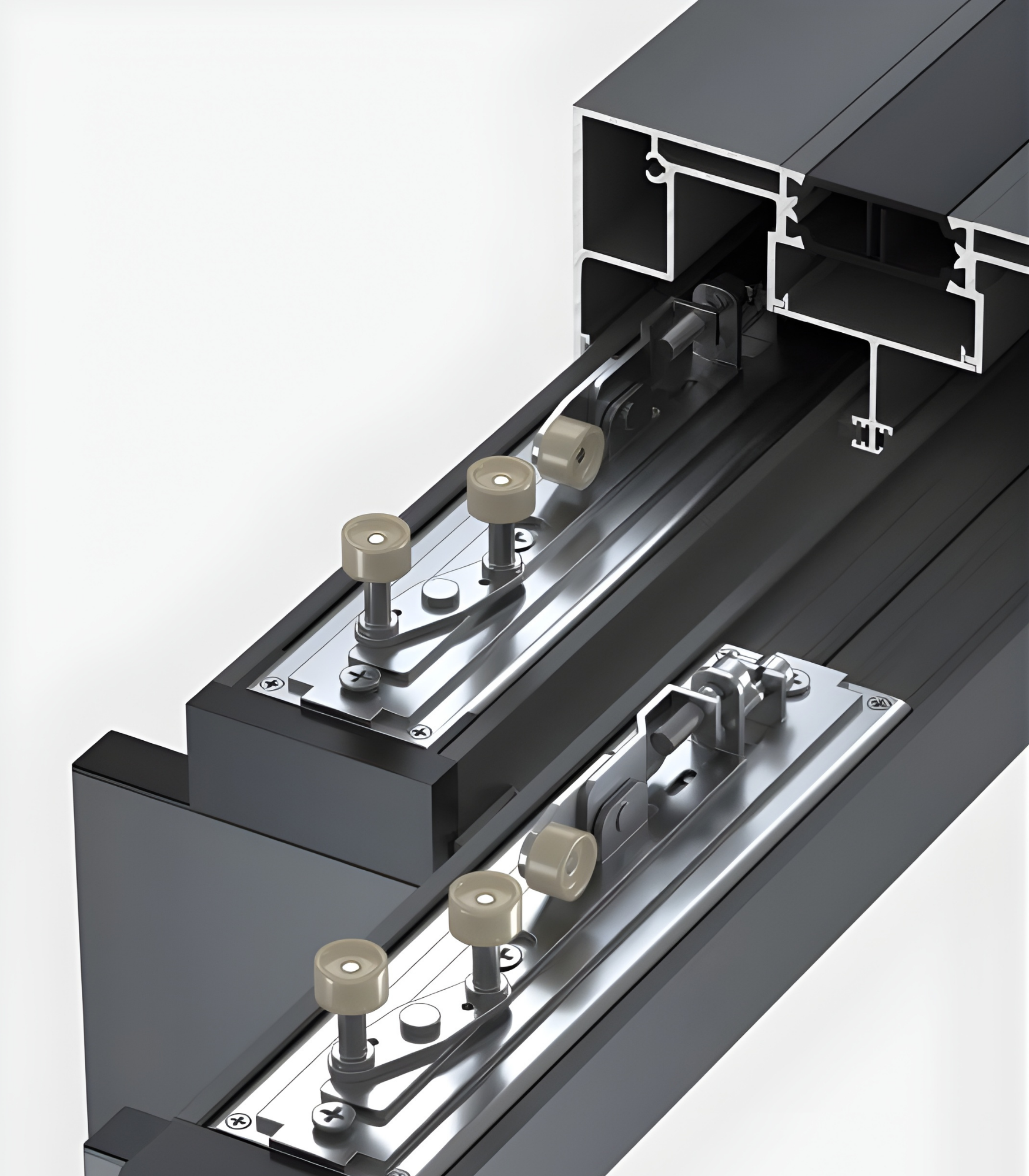

Security & Hardware – Multi-point locking hardware secures the panel at multiple points along the track, not just a single latch in the middle. The stainless steel bearing system resists corrosion from salt air, which matters more on Mission Bay than most people realize.

Color & Glass Options

The VLX 138 comes in six finishes. Premium Black is the most requested finish in San Diego right now – it suits modern farmhouses in North County and sleek contemporary builds in La Jolla equally well. Pure White works for coastal cottages and transitional homes where the frame should disappear into bright interiors. Anodized Silver is the classic aluminum look, favored in mid-century remodels in Clairemont and Tierrasanta. Bronze and Champagne are warmer metallics that pair well with earth-tone exteriors common in Rancho Santa Fe and Poway. Teak Wood is a wood-grain finish for homeowners who want the look of timber without the maintenance of real wood in salt air.

Glass selection depends on your exposure. Clear maximizes light and view, fine for north-facing or shaded openings. Low-E is the default for west-facing glass in San Diego because it cuts solar heat gain without darkening the view. Gray Tint and Black Tint reduce glare, which helps if the door faces the ocean and the afternoon reflection is intense. Frosted and Obscure are for privacy applications – a bathroom opening to a private courtyard, or a side panel where neighbors are close in Point Loma or Mission Hills.

Installation by Westlight Windows San Diego in San Diego

This is where a good door goes bad. We’ve replaced VLX 138 doors that were installed by general contractors who “do windows too.” A 36-foot sliding door has almost no tolerance for error. If the track isn’t perfectly level, the panels bind. If the frame isn’t plumb and square, the seals don’t seat. If the perimeter joints aren’t foamed per AAMA 812, you get air leaks, water intrusion, and a failed manufacturer warranty.

Westlight Windows San Diego installs every VLX 138 per AAMA 2400 and AAMA 2410 standards, the installation guidelines ViewLux requires for warranty coverage. Our process starts with a pre-installation inspection of the rough opening. We check the subfloor for level, the header for deflection, and the surrounding wall for moisture. If the opening isn’t right, we fix it before the door goes in.

Then we set the door: level, plumb, square. Every perimeter joint gets AAMA 812-compliant low-expansion foam sealant, not a bead of exterior caulk that shrinks and cracks in the San Diego sun. After the panels are hung and adjusted, we run a full water test on the sill and track. Cleanup is part of the job. When we leave, the door opens with a finger, locks at every point, and doesn’t whistle when the Santa Ana winds blow.

San Diego has its own building and energy code requirements, and the VLX 138’s NFRC ratings help meet Title 24 compliance for new construction and major remodels. We handle the documentation for that. Wood-framed coastal homes in Ocean Beach and Pacific Beach settle; we account for that in how we flash and seal the opening.

Frequently Asked Questions – VLX 138 Panoramic Sliding Door

What does the VLX 138 Panoramic Sliding Door cost in San Diego?
Most VLX 138 installations in San Diego run from roughly $1,200 to $2,800 per linear foot of opening width, depending on panel count, glass package, finish, and site conditions. A typical 12-foot opening with two panels and Low-E glass tends to land in the $15,000 to $30,000 range installed, while a full 36-foot four-panel wall of glass runs higher. The only way to get an accurate number is a site measurement, because structural headers, stucco repair, and access all move the price. Call (619) 793-3829 for a free on-site estimate.

What is the lead time for the VLX 138 Panoramic Sliding Door?
Typical lead time is 6 to 10 weeks from final measurement to delivery at our San Diego facility, depending on the finish and glass package. Custom sizes, impact glass, and specialty finishes like Champagne or Teak Wood can extend it. We recommend ordering as early as possible in your project schedule, because the door is made to your exact opening dimensions. Call (619) 793-3829 and we’ll give you a current lead time for your configuration.

Does the VLX 138 qualify for energy tax credits?
Yes, in many cases. Doors with qualifying Low-E glass packages and NFRC-certified thermal break performance can qualify for federal energy efficiency tax credits as part of the Inflation Reduction Act provisions. Whether your specific configuration qualifies depends on the glass package and the NFRC ratings for that assembly. We can pull those numbers for your quote.

What warranty comes with the VLX 138 Panoramic Sliding Door?
The VLX 138 carries a manufacturer warranty from ViewLux that covers the frame, glass, and hardware. The important caveat: that warranty only applies when the door is installed by an authorized partner per AAMA 2400/2410 standards. Westlight Windows San Diego is an authorized ViewLux installation partner, so your door is installed warranty-safe from day one. We’ll walk you through the exact warranty terms for your configuration when you get a quote. Call (619) 793-3829.

How do I maintain the VLX 138 aluminum frame and track?
Keep the track clear of sand and debris, which matters in San Diego beach communities where sand gets tracked in constantly. Vacuum the track monthly and wipe the frame with mild soap and water. The stainless steel bearings are sealed and designed to run without lubrication. Avoid abrasive cleaners on the finish, especially on Bronze and Champagne. If a panel ever feels tight or makes noise, call us before it worsens.

Get a Quote – VLX 138 Panoramic Sliding Door in San Diego

The VLX 138 is a significant investment, and you should know exactly what it costs before you commit. Westlight Windows San Diego provides free on-site measurements with written, line-item quotes. No vague numbers, no surprise change orders. We measure, we quote, we install, we stand behind it. Call (619) 793-3829 to schedule your free measurement and start your project.

Written by the team at Westlight Windows San Diego, authorized ViewLux installation partner serving San Diego, CA.
